Runsheet — Race Engineering, Setup & Strategy Software

Runsheet is race engineering software for the whole race weekend: run plans, digital runsheets, setup sheets, fuel and pit strategy, tyres and debriefs. Your data stays on your PC and keeps working offline.

Explore the demoDemo for desktop

No installation · No account · Interactive preview

Download for Windows

Windows 10 / 11 · 180-day free trial

MisanoFP215:30 – 16:30

Car in the pit

Best: 1:34.275; Run 3, Lap 4
Ideal: 1:34.201
Laps: 7; 29.6 km

Run 3

DriverL. Moretti

TyresSet 2

Start fuel [kg]Fuel/lap [kg]

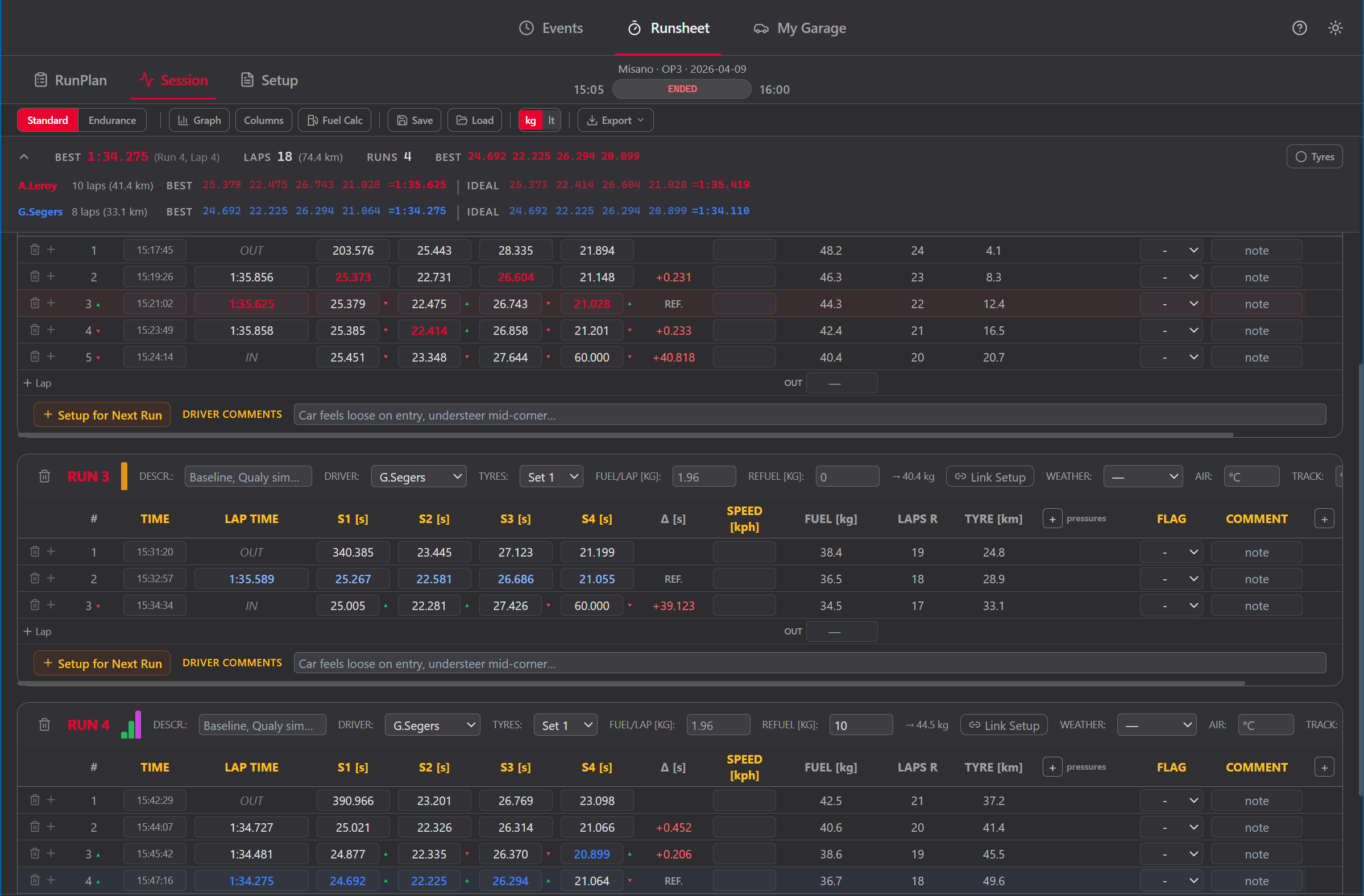

Session runsheet for run 3: pit clocks, lap and sector times, and the values Runsheet calculates from them
Lap	Pit in	Pit out	S1 [s]	S2 [s]	S3 [s]	Δ run best [s]	Fuel in car [kg]	Fuel rem. laps	Tyre [km]
1OUT	—	15:40:12					44.0	22	33.8
2	—	—				+0.630	42.1	21	38.0
3▴	—	—	▴	▴	▴	+0.267	40.1	20	42.3
4▴	—	—	▴	▴	▴	REF.	38.2	19	46.5
5▾	—	—	▾	▾	▴	+0.059	36.2	18	50.7
6▾	—	—	▴	▾	▾	+0.515	34.2	17	55.0
7IN	15:51:13	—	▾	▴	▾	+14.959	32.3	16	59.2

Typed, or sent by HH Timing
Columns Runsheet works out
Fastest of the session

Change a boxed value and the sheet follows

Replaces Excel setup sheets · paper runsheets · fuel calculators

Works Offline in the paddock · on Windows 10 / 11

Data In a local database on your own PC

Before the event

Plan every run before the car rolls out.

Build the event once: championship, track, cars, drivers and TimeTable. Then lay out each session in RunPlan, with who drives, on which tyres, for how many laps and on how much fuel.

MisanoFP110:00 – 10:55

Runs: 4
Laps: 22
Track time: 00:35:32
Pit time: 00:19:00
Fuel: 41.8 kg
Distance: 93.0 km
Set 1: 0.0 → 42.3 km
Set 2: 12.7 → 63.4 km
L. Moretti: 42.3 km; 10 laps
A. Conti: 50.7 km; 12 laps

Run timeline

L. MorettiA. ContiPit

L. MorettiA. Conti

Pit 3:00

Pit 5:00

Pit 6:00

Pit 5:00

Pit 0:28

+52.0 kg42.4 kg

R1 - 5 laps - 00:08:02R1 - 5 lapsSet 1 0.0 → 21.1 km

10:03:00 → 10:11:02

31.1 kg

R2 - 6 laps - 00:09:46R2 - 6 lapsSet 2 12.7 → 38.1 km

10:16:02 → 10:25:49

+10.0 kg31.5 kg

R3 - 5 laps - 00:07:59R3 - 5 lapsSet 1 21.1 → 42.3 km

10:31:49 → 10:39:48

20.2 kg

R4 - 6 laps - 00:09:43R4 - 6 lapsSet 2 38.1 → 63.4 km

10:44:48 → 10:54:32

10:00:00
10:05:00
10:10:00
10:15:00
10:20:00
10:25:00
10:30:00
10:35:00
10:40:00
10:45:00
10:50:00
10:55:00

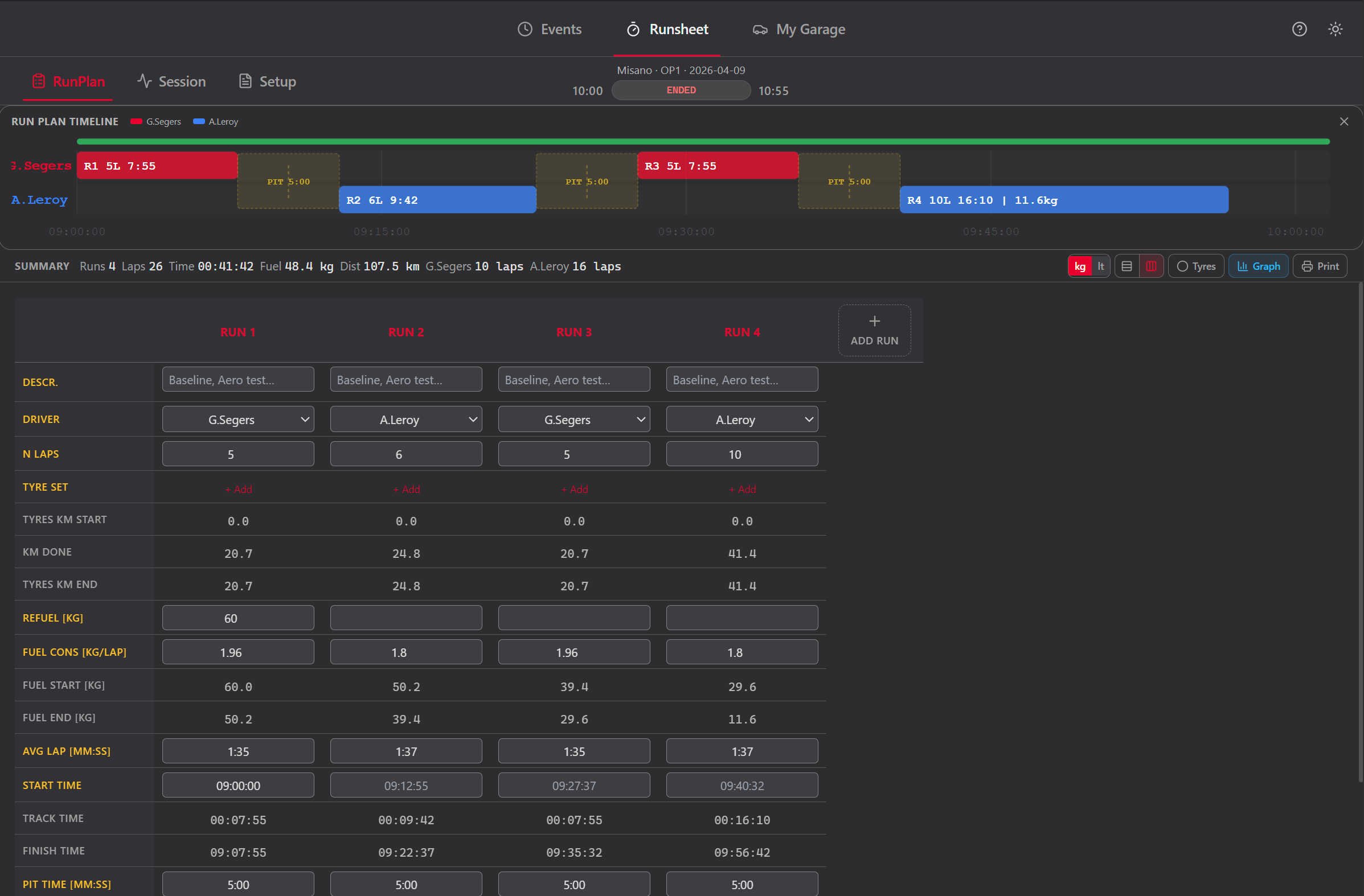

RunPlan: the runs of the session with the time in the pit, laps, driver, tyre set and fuel typed for each one, and the clock, tyre distance and fuel Runsheet calculates from them
Run	Start	End	Run time	Time rem. end	Tyre start [km]	Tyre end [km]	Fuel start [kg]	Fuel end [kg]
1	10:03:00	10:11:02	00:08:02	00:43:58	0.0	21.1	52.0	42.4
2	10:16:02	10:25:49	00:09:46	00:29:11	12.7	38.1	42.4	31.1
3	10:31:49	10:39:48	00:07:59	00:15:11	21.1	42.3	41.1	31.5
4	10:44:48	10:54:32	00:09:43	00:00:28	38.1	63.4	31.5	20.2

Typed for the run
Columns Runsheet works out
1:36.500Taken from the driver

Change a run and the plan follows

TimeTable: Days, sessions and cars for the whole event, with one door into every session.
RunPlan: Driver, tyre set, laps and fuel for every run, with session time and fuel totals.
Tyre heater plan: Put-in and take-out times for every set, printed for the garage.
Your Excel layout: Export the plan through your own workbook, each value on the cell you choose.

In the session

Log every lap while the car is out.

Type lap and sector times, or receive them live from HH Timing. Bests, ideal laps, deltas, fuel in the car and tyre mileage follow on their own, for one car or two side by side.

Paul RicardFP2Car 27

Session ended

Best: 2:06.280; Run 1, Lap 2
Ideal: 2:06.018
Laps: 12; 70.1 km

Run 1

DriverE. Marchetti

TyresSet 3

Lap time graph

E. Marchetti

Session runsheet for car 27, run 1: lap and sector times with the gap to the best lap of the run
Lap	S1 [s]	S2 [s]	S3 [s]	Δ run best [s]
1OUT
2				REF.
3▾	▴	▾	▾	+0.356
4▾	▾	▾	▾	+1.123
5▴	▾	▾	▴	+0.825
6▾	▴	▴	▾	+1.113
7▴	▾	▴	▴	+0.741
8▾	▾	▾	▾	+2.567
9▴	▴	▴	▴	+1.765
10▾	▾	▾	▾	+2.605
11▴	▴	▴	▴	+1.200
12IN	▾	▾	▾	+15.995

Typed, or sent by HH Timing
Columns Runsheet works out
Fastest of the session

Change a time and the graph follows

Driver ideals: Best sectors and ideal lap for each driver, with the gap to your competitors.
HH Timing: Live laps, sectors, flags and pit clocks for several cars, locally or over the team LAN.
Graphs: Lap time, sector and speed trends, one car against another.
Custom columns: Add the columns your category needs and color them your way.

In the garage

Keep every setup. See what changed.

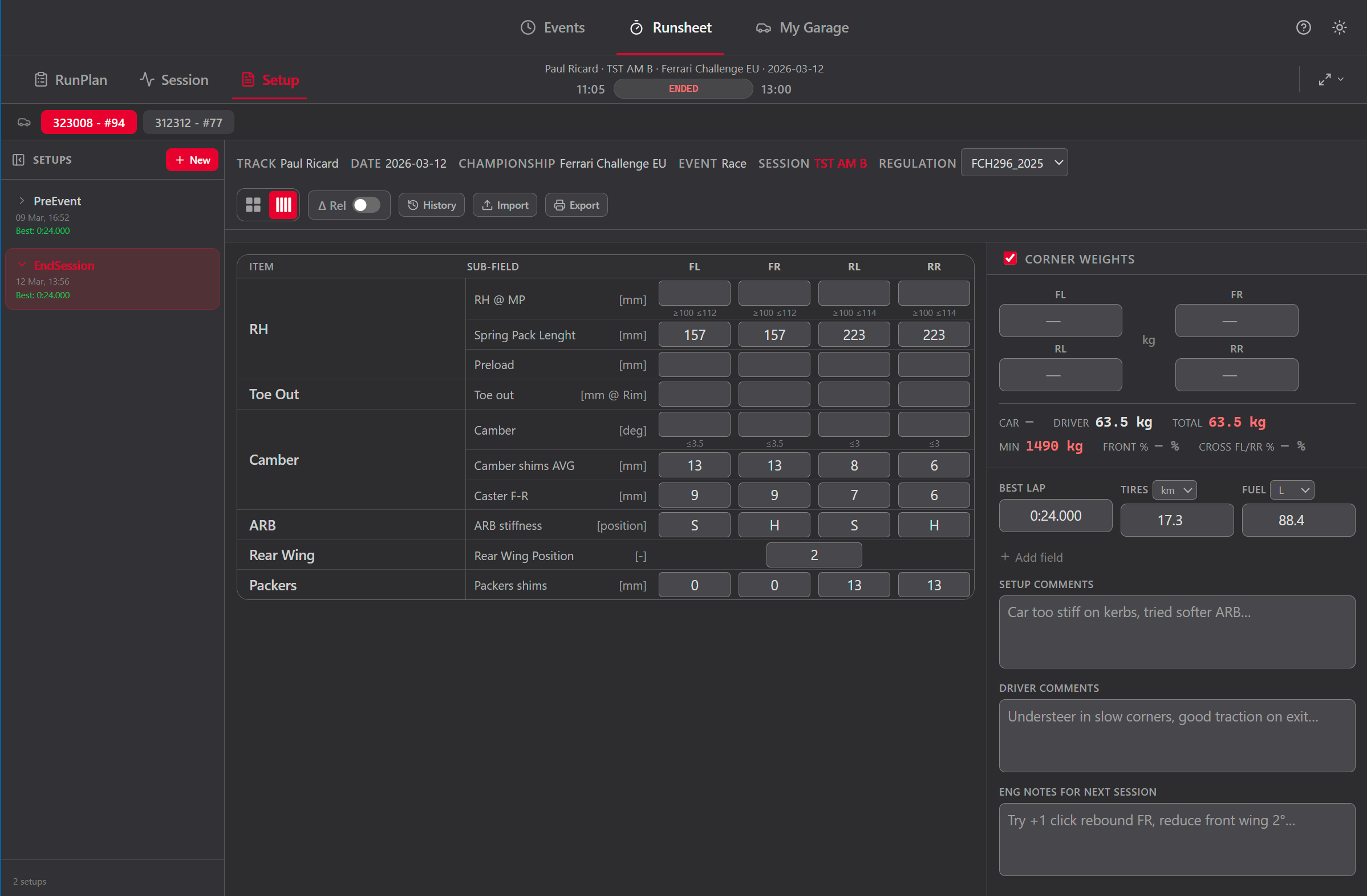

Every session keeps its own setup sheets, built from your template. Compare any two side by side, check each value against the regulation limits and work out the adjustment before anyone touches the car.

Paul RicardFP2Car 27End of session

FLFR

Item	Sub-field		FL	FR		Sub-field	Item
Ride height	RH @ MP	[mm]	≥98 ≤110	≥98 ≤110	[mm]	RH @ MP	Ride height
Ride height	Preload	[mm]			[mm]	Preload	Ride height
Toe out	Toe out @ rim	[mm]			[mm]	Toe out @ rim	Toe out
Camber	Camber	[deg]	≤3.5	≤3.5	[deg]	Camber	Camber
Camber	Camber shims	[mm]			[mm]	Camber shims	Camber
ARB	Position	[-]			[-]	Position	ARB
Packers	Packer shims	[mm]			[mm]	Packer shims	Packers

RLRR

Item	Sub-field		RL	RR		Sub-field	Item
Ride height	RH @ MP	[mm]	≥102 ≤116	≥102 ≤116	[mm]	RH @ MP	Ride height
Ride height	Preload	[mm]			[mm]	Preload	Ride height
Toe out	Toe out @ rim	[mm]			[mm]	Toe out @ rim	Toe out
Camber	Camber	[deg]	≤3	≤3	[deg]	Camber	Camber
Camber	Camber shims	[mm]			[mm]	Camber shims	Camber
ARB	Position	[-]			[-]	Position	ARB
Packers	Packer shims	[mm]			[mm]	Packer shims	Packers

Global

Item	Sub-field		Value
Rear wing	Position	[-]	≥1 ≤6

Corner weights

FLFRRLRR

Corner total: 1462.0 kg
Front: 43.8 %
Cross FL/RR: 50.0 %

Setup comments

Front ride height up 1 mm after FP1. Rear packers unchanged.

Driver comments

Stable on entry, a little understeer in the long right-handers.

Typed on the sheet
≥98 ≤110Limits of the regulation
Outside the limits

Switch on Δ Rel, then change a ride height

Butterfly layout: Left corners on the left, right corners on the right, the labels on both sides. Or four columns, one for each corner.
Adjustment calculator: Turns, shims and faces to reach a target geometry, cross-coupling included.
Corner weights: Type the four scales: total weight, front and cross percentages follow.
BoP and scrutineering: Balance of Performance revisions, limits and inspections checked against the setup.

In the race

Call the race with the numbers in front of you.

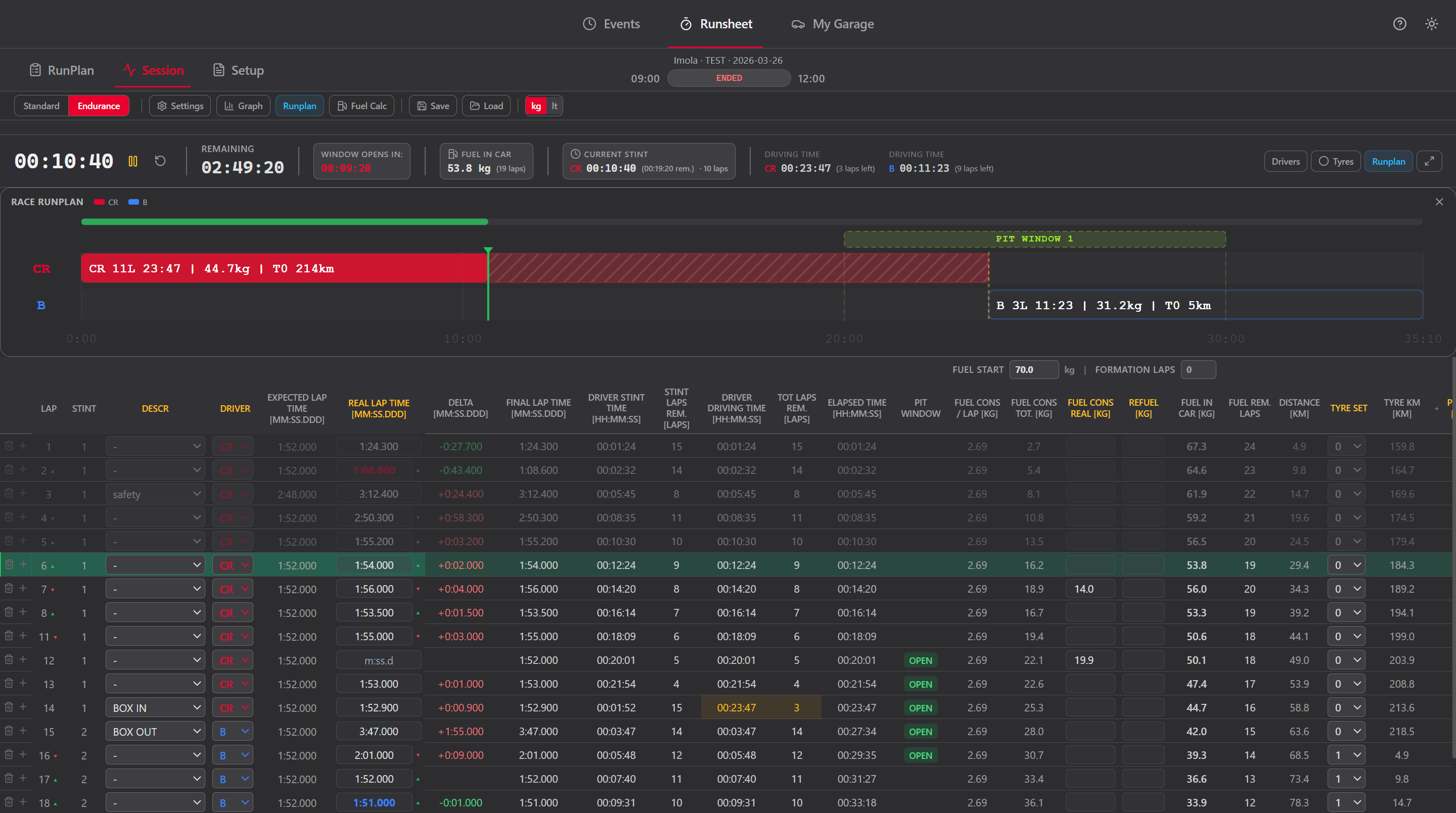

Race turns the sheet into a pit wall. Fuel in the car, stint time, driving time and pit windows count down lap by lap, and the laps ahead are forecast at the pace of the driver in the car.

ImolaRace 160 min

Race clock: 00:18:52
Remaining: 00:41:07
Window opens in: 00:01:07; 1.1 min
Fuel in car: 64.7 kg; 23 laps
Current stint: EM 00:18:52; 11.1 min · 5 laps
Driving time: EM 00:18:52 11 laps left

Race runsheet: lap times and fuel readings with the stint, driving time, pit window and fuel values Runsheet calculates from them, and the next three laps as a forecast
Lap	Stint	Status	Driver	Lap time [m:ss.sss]	Δ race best [s]	Driver stint time [hh:mm:ss]	Stint laps rem. [laps]	Driver driving time [hh:mm:ss]	Elapsed time [hh:mm:ss]	Pit window	Fuel cons real [kg]	Fuel in car [kg]	Fuel rem. laps
1	1				+5.648	00:01:57	15	00:01:57	00:01:57	OPEN 10L		85.3	31
2▴	1				+1.042	00:03:50	14	00:03:50	00:03:50	OPEN 9L		82.5	30
3	1					00:06:42	8	00:06:42	00:06:42	OPEN 5L		80.9	29
4	1					00:09:31	7	00:09:31	00:09:31	OPEN 4L		79.2	28
5▾	1				+1.476	00:11:24	9	00:11:24	00:11:24	OPEN 5L		76.5	27
6▴	1				+0.354	00:13:16	8	00:13:16	00:13:16	OPEN 4L		72.9	26
7▴	1				+0.000	00:15:08	7	00:15:08	00:15:08	OPEN 3L		70.2	25
8▾	1				+0.626	00:17:00	6	00:17:00	00:17:00	OPEN 2L		67.4	24
9▴	1				+0.293	00:18:52	5	00:18:52	00:18:52	OPEN NEXT		64.7	23
F10	1	Green	EM	1:52.000	—	00:20:44	4	00:20:44	00:20:44	CLOSE 5L	—	61.9	22
F11	1	Green	EM	1:52.000	—	00:22:36	3	00:22:36	00:22:36	CLOSE 4L	—	59.2	21
F12	1	Green	EM	1:52.000	—	00:24:28	2	00:24:28	00:24:28	CLOSE 3L	—	56.5	20

Typed, or sent by HH Timing
Columns Runsheet works out
FForecast of the next laps, at the expected pace

Log the next lap, or type your own times

Stint limits: Stint and driving time for each driver, with a warning when three laps are left.
Fuel readings: Log the fuel used from the dash and the fuel in the car follows the real figure.
Follow Cars: Competitor laps, sectors and pit stops next to your own.
Track map: 125 circuits available offline, with the distance to pit in.

Latest releases

Updated between race weekends.

Runsheet is under constant development by engineers who use it at the track. Updates download on their own, install when you choose and leave your data as it is.

Lap times straight from HH Timing

Runsheet now connects to HH Timing, on the same PC or over the team network. What the timing sees lands in the sheet of each car as it happens, with nothing to type.

Laps and sectors: Lap and sector times for every car you run, in Session and in Race.
Pit in and pit out: The clock at the pit lane entry and exit, logged with the lap.
Flags and track limits: Track status and track-limit warnings, lap by lap.
Follow Cars: Any car the timing sees can be followed: laps, sectors, stints and pit stops.

Capabilities

A complete race engineering workflow.

From the first event plan to the post-session debrief, Runsheet connects the records and calculations a race engineer needs without turning the weekend into another collection of spreadsheets.

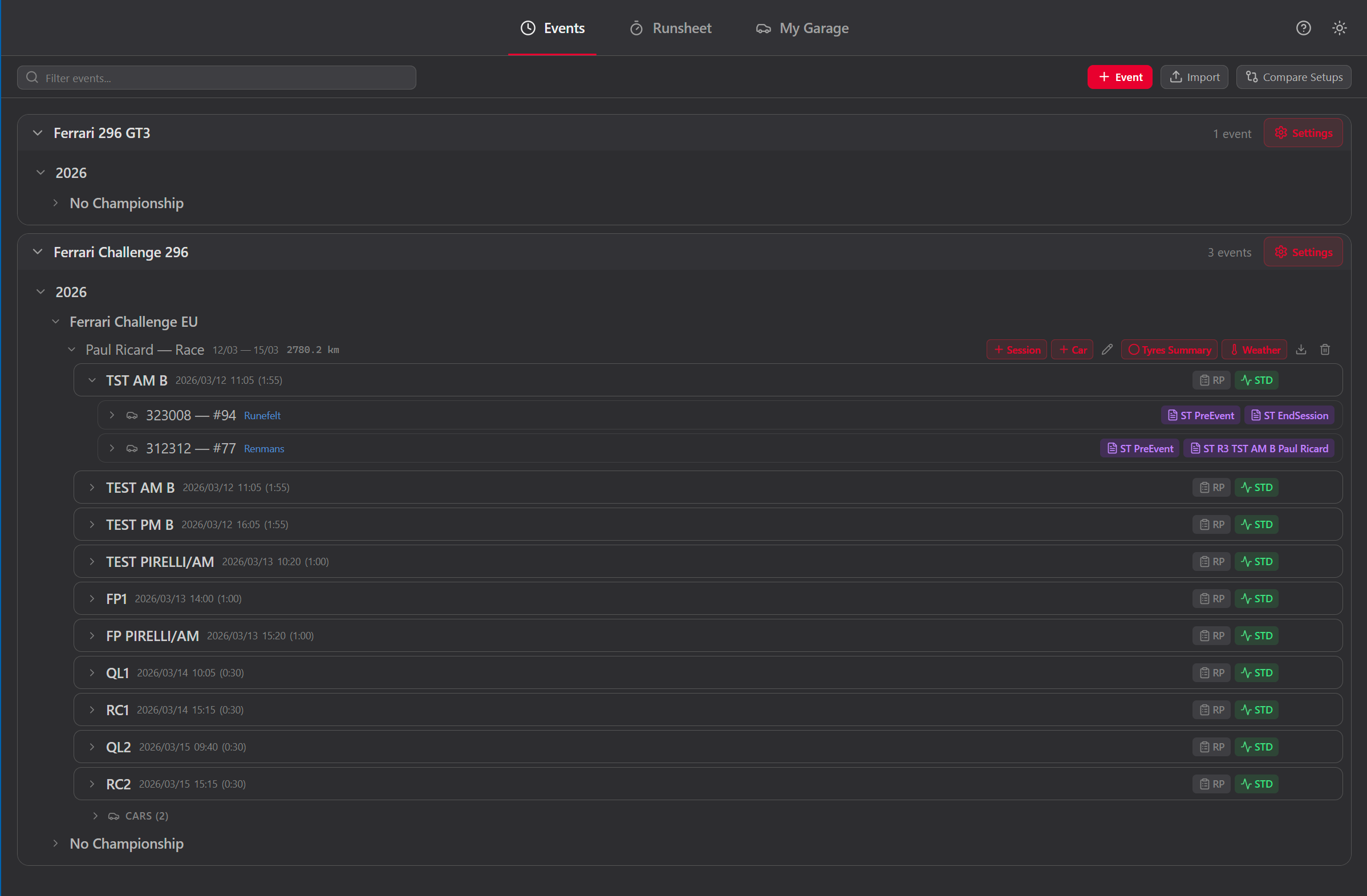

Events, TimeTable & multi-car weekends

Plan championships, tracks, event days, sessions, cars, drivers and team context in one motorsport event-management archive.

Digital runsheets & lap timing

Record runs, laps, up to six sectors, clock time, lap status, driver ideals, deltas, custom columns and live session progress.

RunPlan & tyre-heater planning

Build the session run plan, assign drivers and tyre sets, estimate time and fuel, manage warm-up windows, and print the tyre-heater timeline.

Race & endurance strategy

Model formation laps, driver pace, stint limits, tyre changes, fuel targets and Can call or Must call timing for endurance racing.

Fuel calculator & pit timing

Calculate fuel per lap, race consumption, reserve and remaining laps with pit-lane loss, stop duration, margins and driver-specific pace.

Pit windows & refuel towers

Track pit-window countdowns, mandatory-stop logic, refuelling towers, fuel flow and the timing of each planned stop.

Race car setup sheets

Create customizable butterfly setup sheets, compare revisions, highlight changes, calculate corner weights and retain every session setup.

Setup adjustment calculator

Tell Runsheet how each adjustment moves the car, then enter the geometry you have and the one you want. It works out the turns and shims for each corner, with the effect of every change on the other values.

Tyres, drivers & mileage

Track tyre sets and individual barcodes, starting and accumulated mileage, driver assignments, mixed sets and tyre carryover between events.

Tyre pressure management

Store reference runs, cold and hot pressure logs, pressure targets and pit bleeds, then calculate predictions with the gas-law model and share a mobile view.

Weather & track conditions

Log ambient, track and weather conditions against event, session and race timing, then compare trends in the Weather charts.

BoP, regulations & scrutineering

Manage Balance of Performance revisions and curves, regulation limits, scrutineering measurements, compliance state and setup-to-inspection comparison.

Measurements, Faults & Jobs

Record technical measurements, deltas and warnings, follow vehicle faults, and manage the job list for each session and event.

Tech Report & driver Debrief

Compare setup evolution, prepare technical reports, capture driver feedback and produce consistent post-session debrief documents.

Race Control & Follow Cars

Follow competitor sector and lap timing, compare selected cars and keep the race-control view docked or open on a second screen.

Event reports, PDF & data export

Print complete event reports, RunPlans, runsheets, setup and scrutineering sheets, tyre reports and debriefs; export supported data as PDF, XLSX, JSON or text.

Track maps, documents & data links

Keep GPS track layouts, regulations, PDFs, folders and web references with the right vehicle, championship or event, and link runs to local telemetry files.

Offline database, backup & team transfer

Keep the competitive database local, work offline in the paddock, create verified backups and consolidate multiple cars through controlled export and import.

FAQ

Before you download.

Questions race engineers and teams ask when replacing setup spreadsheets, paper runsheets and separate strategy calculators.

What is Runsheet and who is it for?

Runsheet is race engineering software for performance engineers, data engineers, crew chiefs, team managers, mechanics, and racing teams. It organizes the complete race-weekend workflow: events, sessions, digital runsheets, RunPlan, setup sheets, race strategy, tyres, weather, scrutineering, reports, and debriefs.

Can Runsheet replace Excel setup sheets and race runsheets?

Yes. Runsheet replaces disconnected Excel templates with structured event and session records, digital runsheets, customizable race car setup sheets, setup history and comparison, lap and sector timing, custom columns, printable reports, and verified backup and restore.

What race strategy and pit wall tools are included?

Race and endurance workflows include fuel calculations, fuel margins, formation laps, refuelling strategy, pit timing, pit windows, refuel towers, driver stint limits, tyre changes, driver pace comparison, Race Control, Follow Cars timing, and Can call or Must call strategy guidance.

How does Runsheet manage car setup, BoP, and scrutineering?

The app provides customizable butterfly setup sheets, setup history and comparison, corner weights, adjustment calculations, regulation limits, editable Balance of Performance revisions, scrutineering inspections, compliance status, Measurements, and technical reports.

What tyre management and tyre pressure tools are included?

Runsheet tracks tyre sets, individual tyre identity and barcodes, starting and accumulated mileage, carryover between events, RunPlan tyre-heater windows, cold and hot pressure logs, reference runs, gas-law pressure predictions, pit bleeds, pressure targets, and mobile sharing for the tyre engineer.

What reports and debriefs can Runsheet create?

Runsheet creates printable RunPlans, session and race runsheets, setup sheets, tyre-heater plans, Jobs lists, Tyres and Drivers reports, Tyre Pressure reports, technical reports, scrutineering reports, driver debriefs, and a complete Event Report. Depending on the document, data can be exported as PDF, XLSX, JSON, text, or clipboard content.

What racing categories does Runsheet support?

Runsheet supports GT3, Ferrari Challenge, Cup cars, prototypes, touring cars, karts, formula and single-seater cars, and other circuit-racing categories. Vehicles, setup templates, units, regulations, lists, columns, and workflows are configurable rather than tied to one championship.

Does Runsheet require internet?

Internet is required to create or recover an account, sign in, migrate a licence, and periodically validate access. Motorsport data stays in a local SQLite database. After a successful online check, full offline access remains available for up to 30 days; afterwards the same data remains available for consultation, export, and backup in read-only mode until access is checked again.

How do multi-car teams share Runsheet data?

Each engineer can work independently on a local laptop, then export a complete event or session for transfer by USB or shared folder. A team manager imports the files to consolidate multiple cars without uploading the team's competitive motorsport database to a cloud service.

Download

Bring it to the next test day.

Download and install the app, then create your private account inside Runsheet. Verify your email with the activation code and your 180-day free trial starts immediately.

Preparing download…

No website form or licence key is required.

System Windows 10 / 11

Account Internet required for account setup

macOS Coming soon

Read the Runsheet Privacy Notice
